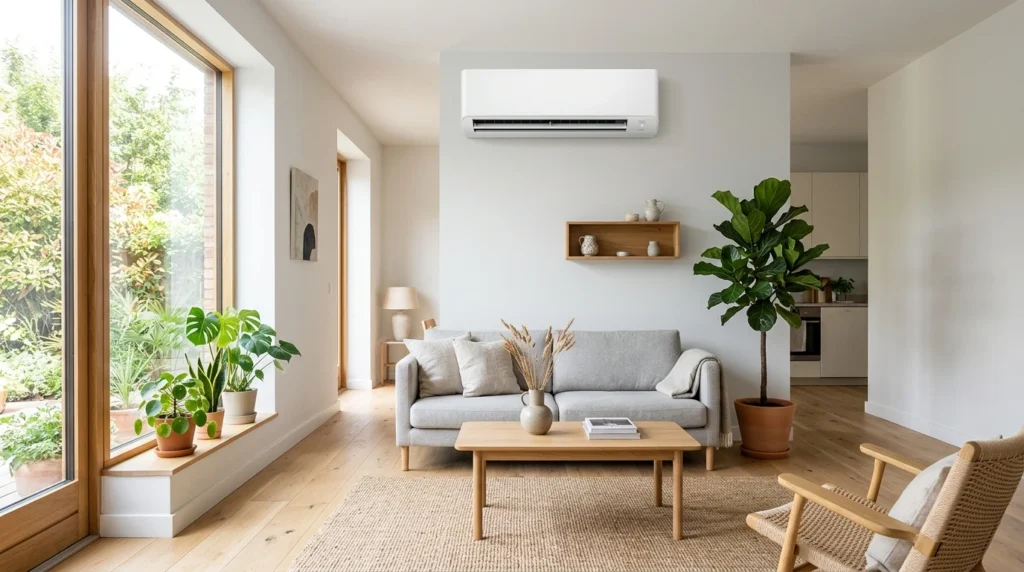

Residential heating and cooling electrification hinges on compressor modulation efficiency, low-ambient thermal extraction, and precise refrigerant metering. Modern 12,000 BTU/h Twin-Rotary Inverter Ductless Mini-Split Heat Pumps target single-zone and accessory dwelling unit retrofits by pairing a variable-speed brushless DC compressor with an electronic expansion valve (EEV) and dedicated latent humidity management. In this engineering review, FoxyEco evaluates published thermodynamic ratings, seasonal efficiency under Department of Energy M1 testing procedures, acoustic decibel telemetry, and practical installation constraints.
Traditional single-stage split systems operate in binary cycles: the motor runs at 100% output until the thermostat is satisfied, causing continuous temperature swings of ±3°F and excessive starting inrush current. In contrast, a modern twin-rotary inverter architecture uses a variable-frequency inverter drive that modulates motor rotation between 1,200 RPM and 4,800 RPM. This architecture allows continuous capacity throttling down to 20% of rated output, reducing parasitic cycling losses while maintaining steady indoor humidity.
Compressor Architecture and Refrigerant Management
The outdoor condensing unit houses a hermetically sealed twin-rotary brushless DC compressor charged with R410A refrigerant (with R32 transitional variants specified for low-GWP compliance). The twin-rotary geometry places two compression cylinders 180 degrees out of phase on a single shaft. This opposing orientation cancels mechanical torsional vibration, lowering compressor noise to 52 dB(A) at 1 meter and substantially extending bearing service life over single-cylinder designs.
Refrigerant distribution is regulated by an active Electronic Expansion Valve (EEV) rather than a fixed capillary tube or thermal expansion valve (TXV). The onboard micro-controller polls indoor suction temperature, outdoor ambient temperature, and discharge line thermistors every 15 seconds. By modulating EEV stepper motor steps from 0 to 480 pulses, the system maintains target superheat between 7°F and 10°F across wide ambient extremes, preventing liquid refrigerant floodback into the compressor sump during abrupt thermal drops.
Dedicated Latent Load & Humidity Control: AlorAir
Pair ductless heat pump retrofits with commercial-grade AlorAir dehumidification to maintain 45%–50% indoor relative humidity during mild shoulder seasons when mini-splits throttle down.
Visit Alorair The Dry Air Official Portal →SEER2 Cooling and HSPF2 Low-Ambient Heating Telemetry
Under the updated DOE Appendix M1 test protocol, external static pressure testing parameters were raised from 0.1 to 0.5 inches of water column (in. w.g.) to replicate real-world duct resistance. Even under these stricter conditions, top-tier 12,000 BTU/h (1-ton) cold-climate inverter systems earn an official rating of 20.5 SEER2 (Seasonal Energy Efficiency Ratio 2) and an EER2 of 12.5 at 95°F outdoor dry-bulb temperature.
In heating mode, the unit carries a rating of 10.0 HSPF2 (Heating Seasonal Performance Factor 2) in Region IV. Crucially for colder geographic zones, the condensing chassis integrates a PTC ceramic crankcase heater and an automated basepan drain heater cable. These elements prevent ice dam formation in the outdoor tray during reversing-valve defrost cycles, allowing continuous space heating down to -13°F (-25°C).
To quantify the financial impact of upgrading from electric baseboard resistance heating or an aging 10 SEER air conditioner, homeowners can model their regional kilowatt-hour tariffs with our interactive Mini-Split Heat Pump Savings Calculator.
Head-to-Head Specification Benchmark
The following engineering matrix compares a Cold-Climate 12,000 BTU/h Twin-Rotary EEV Reference Architecture against two common market benchmarks: the Senville LETO Series and Pioneer WYS Series.
| Engineering Metric | Cold-Climate 12K Twin-Rotary Reference | Senville LETO 12K | Pioneer WYS 12K |
|---|---|---|---|
| Cooling Rating (SEER2) | 20.5 | 19.0 | 20.0 |
| Heating Efficiency (HSPF2) | 10.0 | 9.5 | 10.0 |
| Lowest Heating Ambience | -13°F (-25°C) | 5°F (-15°C) | -4°F (-20°C) |
| Indoor Sound Pressure (Sleep Mode) | 24.0 dB(A) | 25.5 dB(A) | 25.0 dB(A) |
| Compressor Type | Twin-Rotary DC Inverter | Rotary DC Inverter | Twin-Rotary DC Inverter |
| Expansion Control | Electronic Expansion Valve (EEV) | Capillary / Electronic Hybrid | Electronic Expansion Valve (EEV) |
| Refrigerant Factory Charge | Pre-charged to 25 ft | Pre-charged to 16 ft | Pre-charged to 25 ft |
Acoustic Telemetry and Indoor Airflow Distribution
Indoor sound levels dictate occupant satisfaction in bedrooms and home offices. High-efficiency indoor wall cassettes employ a tangential cross-flow fan wheel balanced dynamically to eliminate aerodynamic vortex shedding. In lowest fan setting (“Whisper Mode”), sound pressure measures 24 dB(A) at 2 meters—comparable to the rustle of leaves and well below typical refrigerator hum (38 to 42 dB(A)).
The motorized multi-axis louver provides 4-way independent airflow modulation. In heating mode, the horizontal louver pivots downward to discharge hot air toward floor level, addressing thermal stratification. In cooling mode, the louver directs conditioned air horizontally across the ceiling (the Coanda effect), allowing cold air to settle gently into the occupied zone without drafty hot spots.
Pros and Mechanical Advantages
- Sub-Zero Heating Reliability: Operates down to -13°F with factory-integrated basepan heating element, preventing freeze-up in harsh winter conditions.
- High Modulation Turndown: Twin-rotary inverter compressor ramps down to 20% capacity, cutting unnecessary power spikes.
- Quiet Acoustic Profile: 24 dB(A) sleep mode makes the unit suitable for bedroom and recording studio installations.
- Complete Installation Kit: Includes copper line-set with insulation, communication cabling, drain line, and wall sleeve hardware.
Cons and Practical Limitations
- Dedicated Electrical Infrastructure: Requires a dedicated 208/230V 20A double-pole breaker circuit and an exterior disconnect switch, necessitating professional electrical wiring.
- Strict Evacuation Standards: The refrigeration lines must be evacuated with a commercial two-stage vacuum pump down to below 500 microns before cracking open service valves; improper DIY flare joints will cause refrigerant leakage and void warranty coverage.
- Single-Zone Architecture: The standalone outdoor condenser cannot be expanded to power multiple indoor heads, meaning multi-room retrofits require duplicate outdoor units or a dedicated multi-zone system.
Eliminate Subterranean Moisture Loads: Argendon Dehumidifiers
Prevent crawlspace and basement humidity from migrating into conditioned living zones via the stack effect with Energy Star Argendon dehumidifiers.
Visit Argendon Crawlspace & Commercial Dehumidifier Official Portal →Related Heat Pump Guides and News
To understand how federal subsidies and efficiency benchmarks impact your equipment selection, read our policy update on the DOE 2026 HVAC Energy Standards Update, or explore our engineering deep dive on SEER2 vs EER2 vs COP Heat Pump Metrics Explained.
Frequently Asked Questions
What line-set length typically comes pre-charged with a 12,000 BTU/h mini-split condenser?
The condensing unit ships factory-charged with sufficient refrigerant for line-set runs up to 25 feet (7.6 meters). For installations requiring runs between 26 and 50 feet, an EPA Section 608 certified technician must add 0.22 ounces of refrigerant per additional foot.
Can this unit qualify for federal Inflation Reduction Act (IRA) heat pump rebates?
Yes. Because the unit achieves 20.5 SEER2 and 10.0 HSPF2 with an integrated low-ambient heating package, it meets the Energy Star Version 7.0 cold-climate criteria required by state-administered HOMES and HEEHRA electrification programs.
How often should the electrostatic filters be cleaned?
The washable nylon pre-filters should be removed, rinsed in warm water, and dried every 300 operating hours (roughly once every 3 to 4 weeks during peak heating and cooling seasons). Clean filters preserve coil heat transfer and prevent static pressure drops.
