Basements and extensive crawl space footprints frequently generate moisture loads that overwhelm compact 50-pint residential dehumidifiers. High groundwater tables, porous concrete block foundations, and large subterranean square footage (1,500 to 2,600 sq ft) require industrial moisture extraction capacity paired with high-head drainage systems. The AlorAir HDi90 is built for these demanding duty cycles, delivering 90 pints per day (PPD) under standard AHAM conditions and featuring a factory-integrated condensate pump capable of lifting discharge water nearly 15 feet vertically.
In this technical review, we evaluate the AlorAir HDi90 across its thermodynamic performance, electrical power metrics, internal pump reliability, cold-climate defrost efficiency, and acoustic signature.
Mechanical Architecture & Core Thermodynamic Metrics
The HDi90 is powered by a high-efficiency rotary compressor paired with an oversized hydrophilic aluminum fin evaporator. Operating on standard 115V / 60Hz household power, the unit draws 5.5 amperes (approximately 550 watts) under standard AHAM testing conditions (80°F and 60% RH). Under these benchmark conditions, it extracts 90 pints of water per day, yielding a Coefficient of Performance (COP) Energy Factor of 2.69 L/kWh.
When subjected to saturated test chambers (90°F and 90% relative humidity), water extraction surges to 198 pints per day. Its 210 CFM blower fan provides superior circulation, pushing dried air deep into remote crawl space recesses and across foundation stem walls to eliminate moisture stagnation.
AlorAir HDi90 High-Capacity Dehumidifier
Engineered for large basements and crawl spaces up to 2,600 sq ft. Delivers 90 PPD AHAM extraction with an integrated 14.7-foot vertical lift condensate pump and high-efficiency 2.69 L/kWh performance.
Check AlorAir HDi90 Specifications →Integrated Condensate Pump & Vertical Lift Dynamics

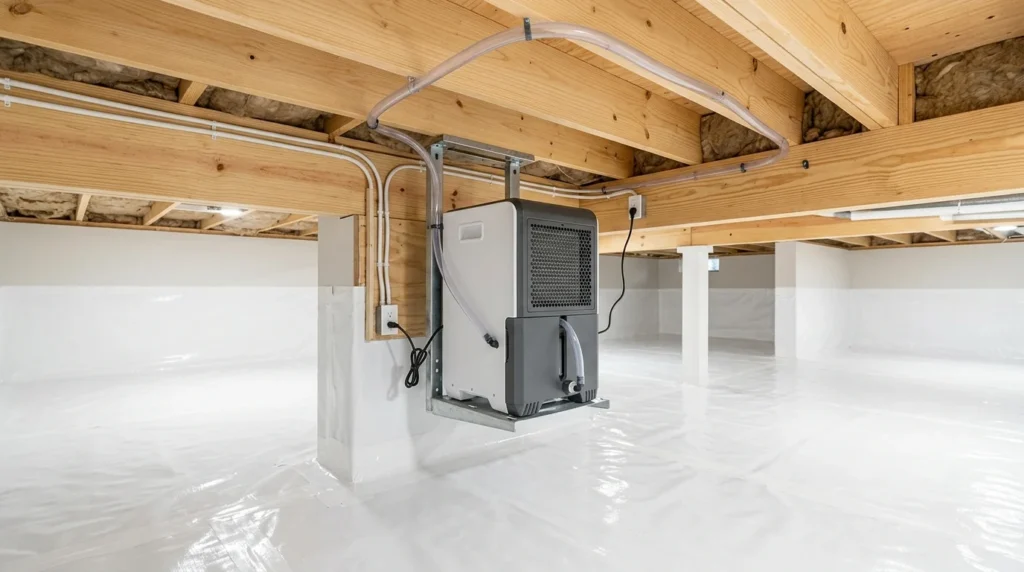

In many below-grade installations, gravity drainage is impossible because foundation perimeters sit below sewer lines and lack dedicated floor drains. The AlorAir HDi90 solves this challenge through an internal condensate pump integrated directly inside the chassis.
The pump assembly features a dual-stage float switch mechanism. When water accumulates in the internal reservoir, the primary float triggers the pump motor, driving water through an included 19.6-foot flexible poly discharge hose. The internal pump delivers up to 14.7 feet of vertical head lift, easily routing water up through subfloor joists to an above-ground laundry drain, utility sink, or exterior discharge point. A built-in check valve prevents backflow into the reservoir once the pump cycle concludes.
Should the drain line become pinched or blocked, the secondary high-water safety float automatically disengages the compressor while sounding an acoustic error code, preventing crawl space water spillage.
Hot-Gas Bypass Defrosting for Cold-Climate Basements
Unconditioned subgrade spaces routinely drop to temperatures between 40°F and 50°F during fall and winter months. Standard consumer dehumidifiers rely on passive fan defrost (shutting off the compressor and running the fan to melt frost), which slashes moisture extraction capacity by up to 70% in cold conditions.
The HDi90 features an active hot-gas bypass defrost valve. When the internal coil thermistor detects frost formation, the solenoid valve diverts superheated refrigerant gas straight from the compressor discharge into the evaporator coils. Frost melts within 2 to 3 minutes without cooling the coils down, allowing continuous operation down to 33°F (1°C).
Comparative Analysis: AlorAir HDi90 vs Industry Competitors
To understand the performance tier of the HDi90, we compared its technical specifications against the Sentinel HD90 (its gravity-drain sibling) and the Santa Fe Advance90:
| Performance Specification | AlorAir HDi90 | AlorAir Sentinel HD90 | Santa Fe Advance90 |
|---|---|---|---|
| AHAM Capacity (80°F / 60% RH) | 90 PPD (42.5 L/day) | 90 PPD (42.5 L/day) | 90 PPD (42.5 L/day) |
| Saturation Capacity (90°F / 90% RH) | 198 PPD | 198 PPD | 200 PPD |
| Energy Efficiency (COP) | 2.69 L/kWh | 2.69 L/kWh | 2.80 L/kWh |
| Airflow Volume (CFM) | 210 CFM | 210 CFM | 309 CFM |
| Integrated Internal Pump | Yes (14.7 ft lift head) | No (Gravity Drain) | Optional External Kit |
| Defrost Mechanism | Hot-Gas Bypass (33°F) | Hot-Gas Bypass (33°F) | Air Defrost (49°F min) |
| Operating Sound Level | 58 dB(A) | 58 dB(A) | 61 dB(A) |
| Unit Weight | 68.3 lbs | 65.0 lbs | 80.0 lbs |
Before selecting dehumidification equipment, calculate your exact moisture load with our Crawlspace Dehumidifier Sizing Calculator. For smaller footprints, check our review of the AlorAir Sentinel HD55 (55 PPD) or read our detailed guide on Crawl Space Dehumidifier Sizing Protocol.
Upgrade to Commercial-Grade Moisture Removal
Protect your finished basement and subfloor structure with the AlorAir HDi90. Built-in condensate pump eliminates the need for manual emptying or floor drain proximity.
Order the AlorAir HDi90 System →Pros of the AlorAir HDi90
- Factory Built-In Condensate Pump: 14.7-foot vertical head lift allows effortless routing to remote utility sinks or exterior grade.
- High Energy Efficiency Factor: Delivers an impressive 2.69 L/kWh, keeping electric bills controlled despite large 90 PPD capacity.
- Hot-Gas Defrost Down to 33°F: Continuous winter operation without coil icing in cold subterranean environments.
- High Air Velocity: 210 CFM blower maintains thorough air circulation across large 2,600 sq ft footprints.
- Ducting Adaptability: Optional supply and return duct collars permit ducted installation from adjacent mechanical rooms.
Cons and Practical Limitations
- Heavy Chassis Weight: At 68.3 pounds, navigating this steel unit through narrow crawl space hatchways typically requires two people.
- Acoustic Output at 58 dB(A): Higher blower velocity generates more acoustic noise; requires suspension mounting or isolation pads if located beneath bedrooms.
- Pump Line Maintenance Requirements: Condensate lines carrying continuous runoff in crawl spaces require an annual vinegar flush to clear algal biofilm.
- Higher Initial Capital Cost: The integrated pump and 90 PPD capacity command a price premium over entry-level 55 PPD gravity units.
Final Technical Verdict
The AlorAir HDi90 is an exceptional commercial-grade dehumidifier for large crawl spaces and expansive basements where gravity drainage cannot be achieved. With 90 PPD extraction, 2.69 L/kWh efficiency, hot-gas defrost down to 33°F, and a reliable internal 14.7-foot lift pump, it provides robust, hands-off humidity defense for demanding subgrade structures.
Frequently Asked Questions
How high can the internal pump push discharge water?
The internal pump produces up to 14.7 feet of vertical lift head, which easily pushes water up through typical 8- to 10-foot floor joist heights into above-ground drains.
Can the HDi90 be ducted?
Yes. The unit accepts optional 6-inch duct collars on both the inlet and outlet, allowing it to condition segmented crawl spaces or hidden utility rooms.
What happens if the condensate drain hose freezes outside?
If the exterior drain hose freezes, the high-water safety switch trips when the internal reservoir fills, immediately shutting down the compressor to prevent crawl space flooding.
