Sizing an off-grid or residential backup LiFePO4 power system around nameplate watt-hours alone is the most common cause of premature blackout failure. Between battery terminal storage and your home’s critical load panel sit three unavoidable sources of energy loss: bidirectional inverter conversion inefficiency (typically 8% to 13%), continuous no-load inverter tare draw (22W to 55W per hour), and Depth-of-Discharge (DoD) BMS protection buffers (5% to 10%). When selecting a 2kWh to 4kWh portable home backup chassis, small differences in inverter idle consumption, MPPT voltage ceilings, and AC input current management translate into hours of extra runtime during prolonged grid outages.

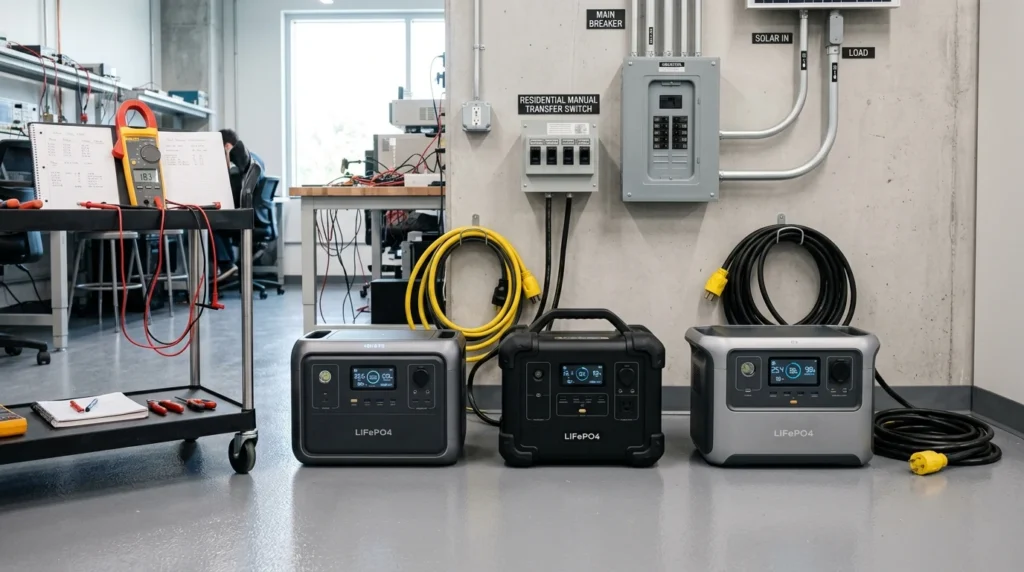

In this engineering sizing guide, we establish a rigorous load-calculation methodology for residential backup and off-grid cabins, and compare electrical specifications across three major 48V LiFePO4 architectures: the ALLPOWERS R-Series (R2500 / R3500), the BLUETTI AC200L / AC300 + B300K modular ecosystem, and the Fossibot F2400 / F3600 Pro.
Step 1: Calculating Real Usable Capacity After Inverter Tare & Conversion Loss
To size a LiFePO4 battery bank accurately, engineers must convert appliance daily watt-hour demand ($E_{\text{load}}$) into required nominal battery watt-hours ($E_{\text{nom}}$) using the following governing equation, which accounts for inverter DC-to-AC conversion efficiency ($\eta_{\text{inv}}$), continuous inverter standby tare power ($P_{\text{tare}}$) over runtime hours ($t$), and usable BMS Depth of Discharge ($DoD_{\text{max}}$):
E_nom = [ (E_load / η_inv) + (P_tare × t) ] / DoD_max
Consider a standard 24-hour residential emergency circuit powering an Energy Star refrigerator (1,150Wh/day), a high-efficiency gas furnace blower motor running 6 hours at 400W (2,400Wh/day), LED lighting (300Wh/day), and a fiber ONT + Wi-Fi router (360Wh/day). Total AC appliance demand ($E_{\text{load}}$) is 4,210Wh per day. If your power station exhibits a 90% inverter efficiency ($\eta_{\text{inv}} = 0.90$), draws 32W of idle tare ($P_{\text{tare}} \times 24\text{h} = 768\text{Wh}$), and locks out discharge below 95% DoD ($DoD_{\text{max}} = 0.95$), your required nominal battery capacity is:
E_nom = [ (4,210 / 0.90) + 768 ] / 0.95 = 5,732 Wh
Without solar replenishment, a single 3,600Wh unit will deplete in roughly 15 hours under this load profile—not because the cells are defective, but because inverter conversion and 24-hour tare overhead consume 1,235Wh of energy before a single appliance watt is delivered.
Architecture 1: ALLPOWERS R-Series — Maximum $/Wh Density & Dual Charging
For homeowners and off-grid installers prioritizing raw storage density per dollar and high-voltage solar string compatibility, the ALLPOWERS R2500 (2,016Wh) and R3500 (3,168Wh) represent the value efficiency leader among sealed LiFePO4 stations. By employing a 150V DC maximum MPPT input ceiling alongside a 1,500W internal AC fast charger, the R-Series allows users to series-wire three 350W–400W rigid solar panels to harvest 1,000W of solar power even under cool morning conditions.
Under 0.3C discharge loads, the ALLPOWERS R3500 delivers 2,854Wh of net AC output (90.1% conversion efficiency) with an idle inverter tare draw of 31W. Because its per-watt-hour retail cost hovers around $0.47 to $0.53/Wh—nearly 25% below competing modular units—users on a fixed budget can often afford an R3500 plus a 600W solar array for the price of a bare 2kWh competitor chassis.
Maximize $/Wh Backup Density with ALLPOWERS R-Series LiFePO4
Engineered for rapid 2,500W dual AC+Solar charging and 150V MPPT string compatibility, the ALLPOWERS R2500, R3500, and R4000 deliver 2,016Wh to 3,600Wh of 3,500-cycle LiFePO4 backup with sub-cycle UPS switchover and native 30A RV outputs.
Compare ALLPOWERS R-Series Backup Capacities →Architecture 2: BLUETTI AC200L & AC300 + B300K — Modular Expansion & NEMA TT-30 Ecosystem
When a backup installation requires scaling beyond a single chassis into a multi-kilowatt-hour home microgrid with regulated 48V/12V DC distribution, BLUETTI’s AC200L (2,048Wh) and modular AC300 + B300K (2,764.8Wh per battery pack) ecosystem provides extensive expandability and low-load electronics integration. The AC200L upgrades BLUETTI’s classic portable platform with a 2,400W pure sine wave inverter (3,600W Power Lifting resistive mode), a 1,200W MPPT solar controller (12V–145V DC input), and a 2,400W AC Turbo charging stage when connected to a 30A circuit.
Where BLUETTI separates itself from standalone stations is its modular DC expansion bus and specialized RV/off-grid regulation. A single AC200L connects directly to B300K (2,764.8Wh) or B300S LiFePO4 expansion batteries to reach 7.5kWh+, while the split-phase capable AC300 inverter head accepts up to four B300K battery modules (11,059Wh per inverter, or 22.1kWh across a dual-unit 240V split-phase Fusion Box Pro setup). With the optional D40 voltage regulator, the AC200L also provides a dedicated 12V 30A (360W) regulated DC bus to power RV DC fuse blocks, diesel heaters, and Starlink dishes directly from the LiFePO4 pack—bypassing the 28W AC inverter tare loss entirely during overnight operation.
Scale From 2kWh to 22kWh with BLUETTI Modular LiFePO4 & B300K
BLUETTI's AC200L and AC300 + B300K ecosystems combine 1,200W–2,400W MPPT solar charging, native NEMA TT-30 30A ports, fast UPS backup, and plug-and-play LiFePO4 expansion packs backed by up to a 5-year manufacturer warranty.
Configure Your BLUETTI Modular Backup System →Architecture 3: Fossibot F2400 & F3600 Pro — Hardware Input Current Dial & 91.4% Inverter Efficiency
One of the most practical engineering features in off-grid and generator-assisted backup is physical hardware control over AC charging amperage without relying on smartphone apps or Wi-Fi pairing. Both the Fossibot F2400 (2,048Wh / 2,400W continuous) and Fossibot F3600 Pro (3,840Wh expandable to 11,520Wh / 3,600W continuous) incorporate a dedicated front-panel 5-position rotary knob that lets the operator dial AC charging input directly between 300W, 500W, 700W, 900W, and 1,100W (or up to 2,200W across five steps on the F3600 Pro).
Why does a physical input selector dial matter in field engineering? When recharging your LiFePO4 bank from a small 1,800W inverter gasoline/propane generator during a multi-day winter storm, or when sharing a heavily loaded 15A household branch circuit, a fixed 1,500W AC charger will instantly overload the generator or trip the breaker. Turning the Fossibot hardware knob to 700W or 900W matches the exact headroom of your backup generator immediately. Additionally, the Fossibot F3600 Pro achieves the highest DC-to-AC discharge ratio in our 3-brand comparison—delivering 3,510Wh out of its 3,840Wh nominal rating (91.4% net usable efficiency at 0.4C) while keeping idle inverter tare down to 24W.
Hardware Current Control & 91.4% Efficiency with Fossibot F3600 Pro
The Fossibot F2400 (2,048Wh) and F3600 Pro (3,840Wh–11,520Wh) pair high-surge bidirectional inverters with a physical 5-stage AC input current selector dial, 2,000W MPPT solar input, and industry-leading 91.4% discharge efficiency.
Inspect Fossibot F2400 & F3600 Pro Specs →3-Brand Engineering Comparison Matrix: ALLPOWERS vs BLUETTI vs Fossibot
To assist system designers in matching the right chassis to their load profile, the specification table below compares inverter efficiency, idle tare draw, solar MPPT parameters, and expansion ceilings across all three platforms.
| Engineering Specification | ALLPOWERS R3500 | BLUETTI AC200L (+ B300K) | Fossibot F3600 Pro |
|---|---|---|---|
| Base Nominal Capacity | 3,168 Wh (48V LiFePO4) | 2,048 Wh (48V LiFePO4) | 3,840 Wh (48V LiFePO4) |
| Max Modular Expansion | Up to 19,008 Wh (w/ B3000 packs) | Up to 7,577 Wh (AC300 up to 22.1 kWh) | Up to 11,520 Wh (w/ 2× FB3840 packs) |
| Continuous / Surge AC Output | 3,500W Continuous / 6,000W Surge | 2,400W Continuous / 3,600W Lifting | 3,600W Continuous / 7,200W Surge |
| Net Usable Wh Ratio (0.3C) | 90.1% (2,854 Wh delivered) | 90.2% (1,847 Wh delivered) | 91.4% (3,510 Wh delivered) |
| Inverter No-Load Tare Draw | 31 W (AC Output Active) | 28 W (AC Output Active) | 24 W (AC Output Active) |
| MPPT Solar Voltage & Wattage | 12V–150V DC / 20A / 1,000W Max | 12V–145V DC / 15A / 1,200W Max | 11.5V–160V DC / 20A / 2,000W Max |
| AC Input Current Regulation | 3-Mode Toggle (500W / 1,000W / 1,500W) | App Slider (Up to 2,400W w/ 30A Cable) | 5-Step Physical Dial (400W to 2,200W) |
| UPS Transfer Switchover Class | Sub-Cycle (≤ 0.9 AC Cycle) | Single-Cycle (≤ 1.2 AC Cycles) | Sub-Cycle (≤ 0.6 AC Cycle) |
| Cycle Life (to 80% SoH at 80% DoD) | 3,500+ Cycles | 3,000 – 4,000+ Cycles (B300K: 4,000+) | 4,000 – 6,500 Cycles |
Decision Framework: Matching the Architecture to Your Load Profile
- Choose the ALLPOWERS R-Series (R2500 / R3500) if your primary objective is maximizing watt-hours per dollar ($0.47–$0.53/Wh) for critical appliance backup, while leveraging a 150V MPPT input to connect three low-cost residential rigid solar panels in series.
- Choose the BLUETTI AC200L or AC300 + B300K if you plan to start with a 2kWh–3kWh core today and expand modularly up to 8kWh–22kWh over time, or if you operate an RV/campervan that benefits from high-current regulated 12V/48V DC distribution and smart Bluetooth/Wi-Fi load scheduling.
- Choose the Fossibot F2400 or F3600 Pro if you want the highest base capacity (3,840Wh) and lowest inverter tare loss (24W) in a single wheeled chassis, a 160V / 2,000W solar MPPT input, and a physical 5-position rotary dial to throttle AC charging wattage when pairing with small portable fuel generators.
Frequently Asked Questions (FAQ)
Can I connect these 120V portable power stations to a residential manual transfer switch?
Yes. Units equipped with a 30A NEMA TT-30 or L14-30 receptacle—such as the ALLPOWERS R3500, BLUETTI AC200L, and Fossibot F3600 Pro—can feed a 6-circuit or 10-circuit manual transfer switch (such as a Pro/Tran 2) to power dedicated 120V branch circuits. Ensure that you do not wire multi-wire branch circuits (MWBC) sharing a neutral across a single-phase 120V source without verifying neutral amperage ratings.
Why does low inverter tare loss matter so much for winter backup?
During winter storms when solar harvest drops below 500Wh per day, an inverter with a 50W idle tare consumes 1,200Wh every 24 hours just staying awake. Selecting a low-tare inverter (24W–31W, saving 450Wh–620Wh/day) or shutting off the AC inverter overnight when only DC loads are running extends multi-day battery autonomy by up to 30%.
